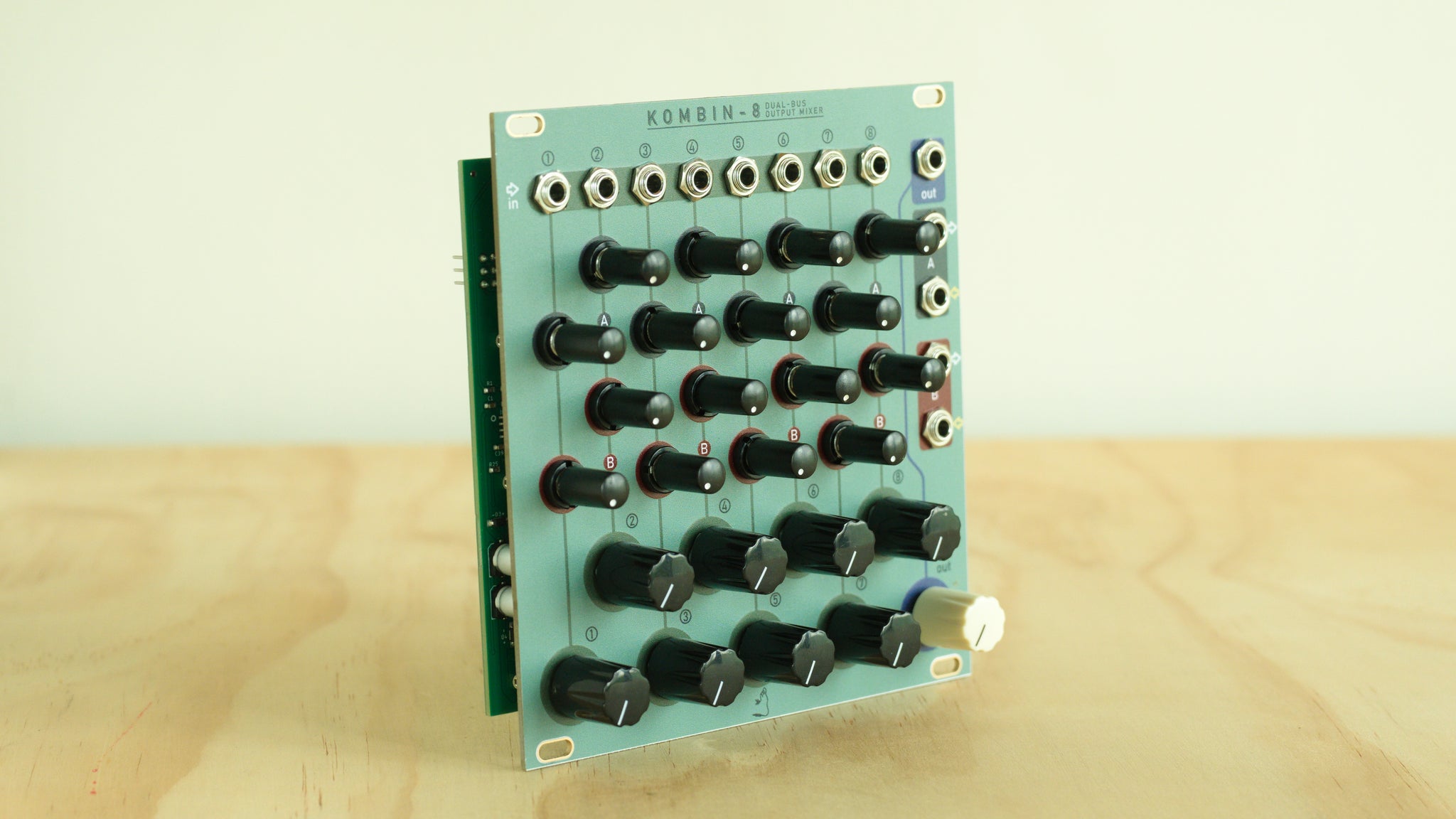

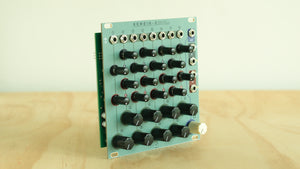

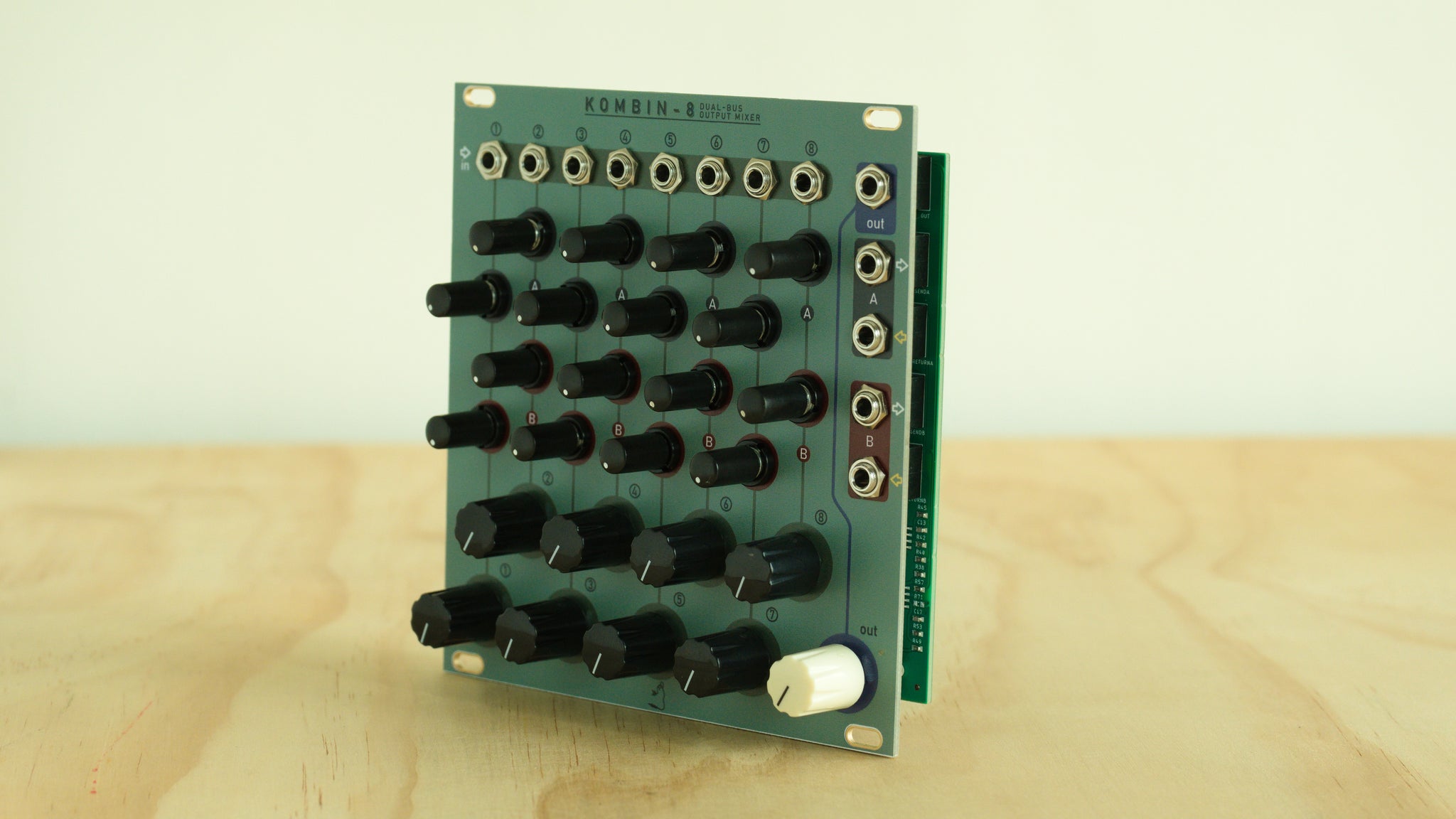

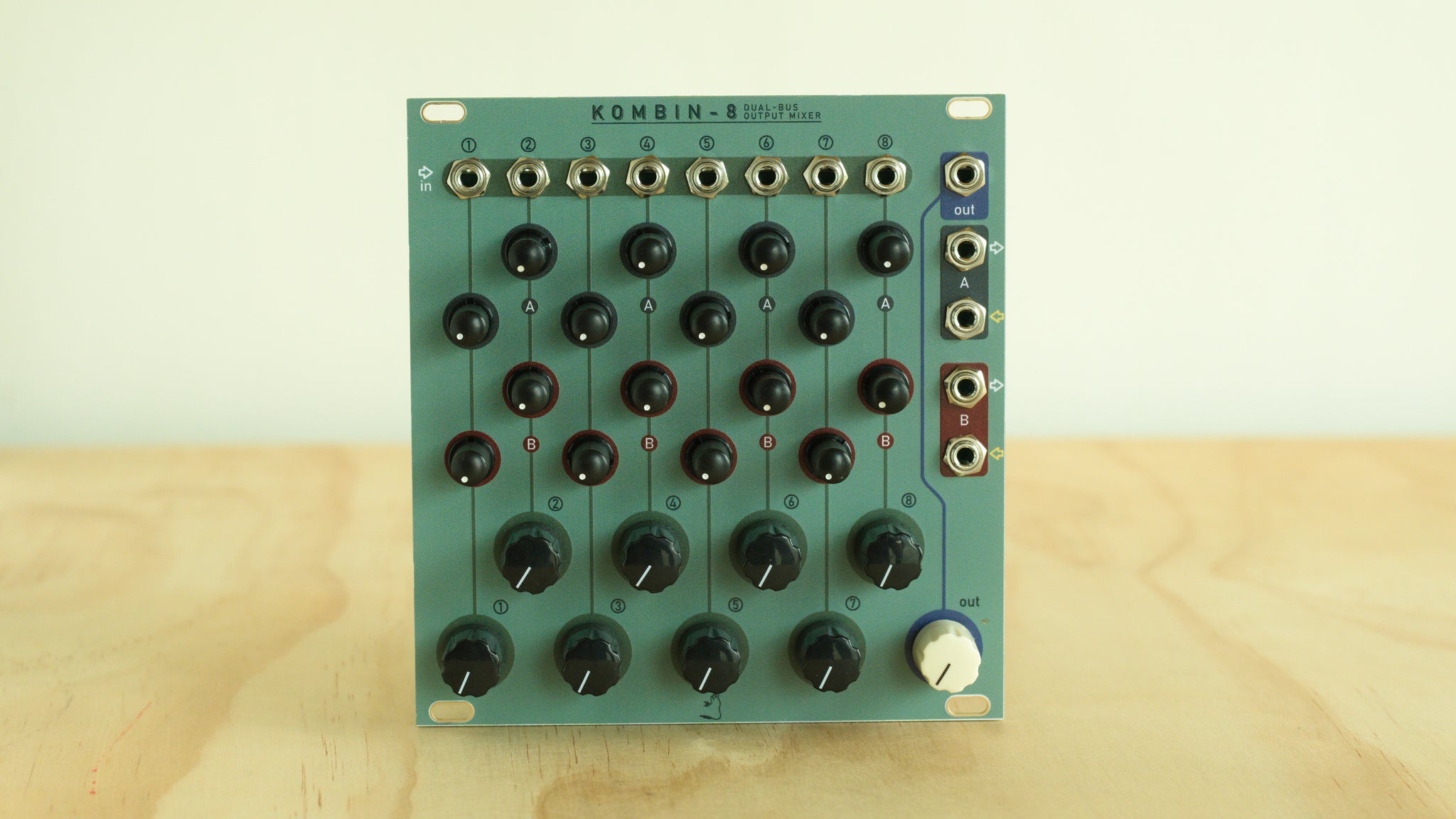

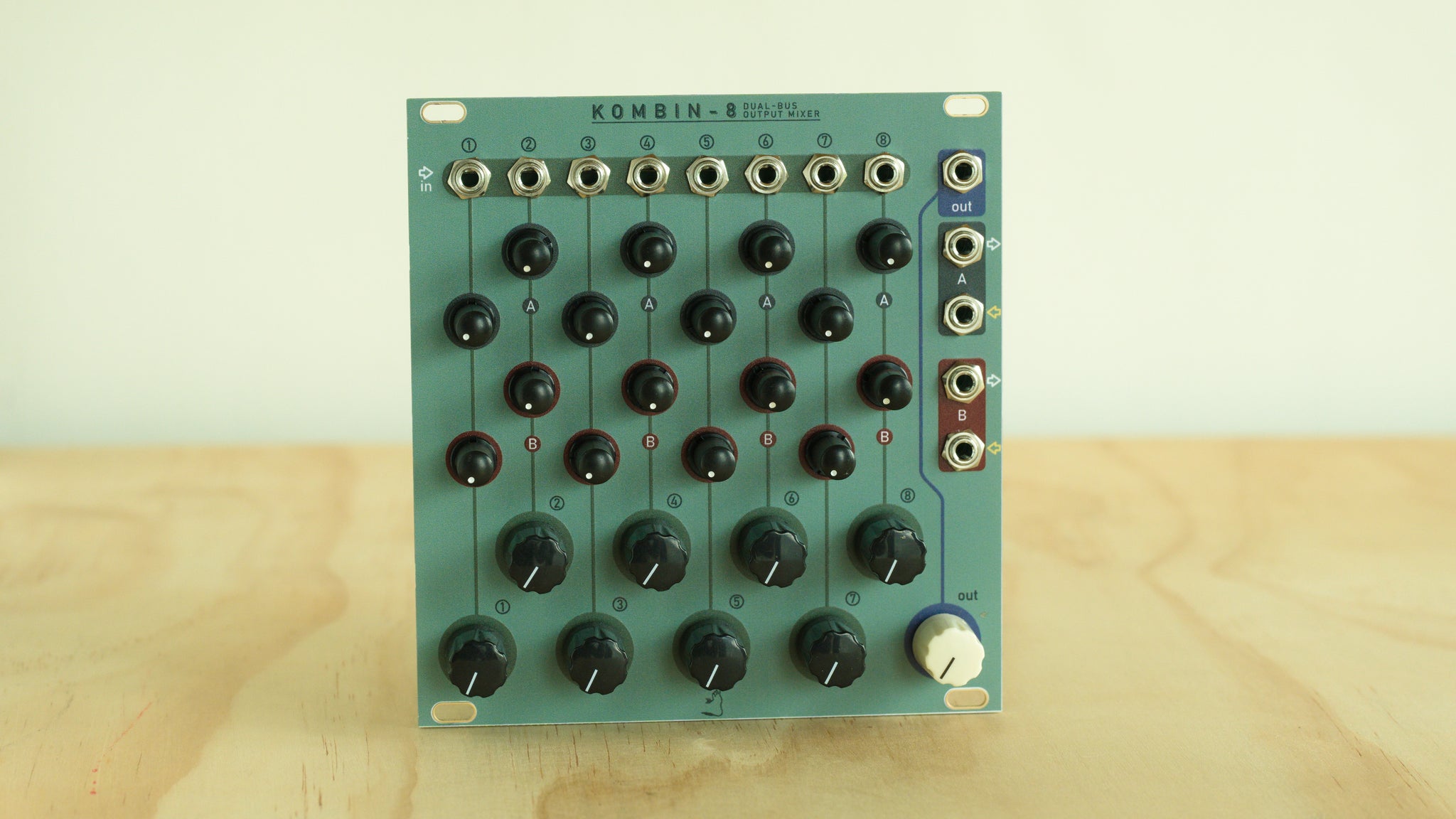

Tenderfoot Electronics – KOMBIN-8
8-Channel Dual-Bus Eurorack Mixer
KOMBIN-8 is a compact, chainable 8-channel mono audio mixer designed for Eurorack. With two fully independent send/return buses, it’s equally at home in traditional studio-style setups or experimental signal chains. Each channel offers dedicated send controls for both buses, plus rear-panel switches to select pre- or post-fader operation for ultimate routing flexibility.
Its clean, passive-fader topology delivers low noise and a direct signal path, while the chainable design means you can link multiple units into larger mixing systems without adding complexity. Whether you’re building a compact performance skiff or a sprawling multi-case setup, KOMBIN-8 is ready to be the heart of your modular mix.
Key Features
-
8 AC-coupled mono inputs, tolerant of ±12 V signals
-
Independent send controls for two effects buses (A & B)
-

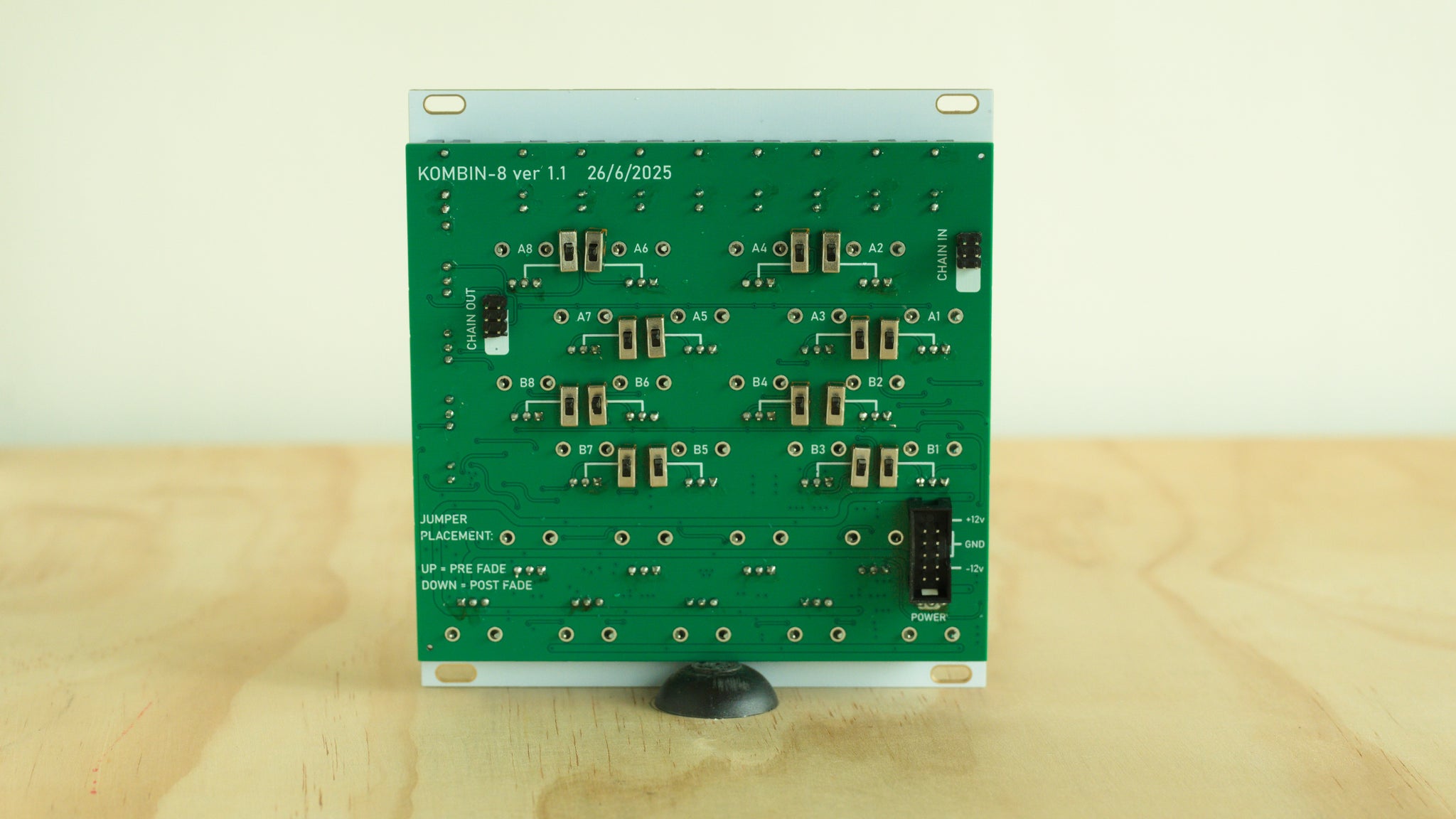

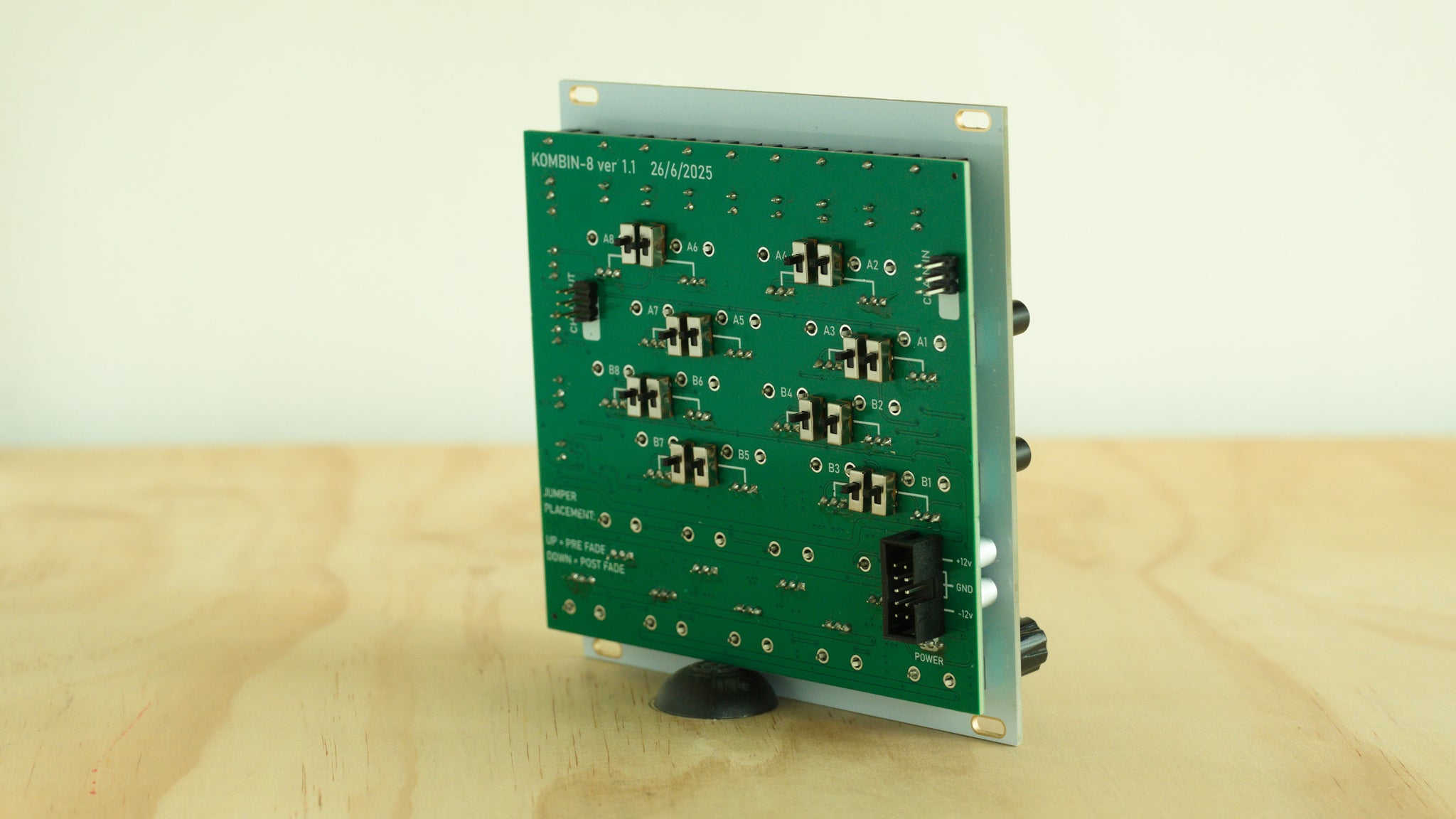

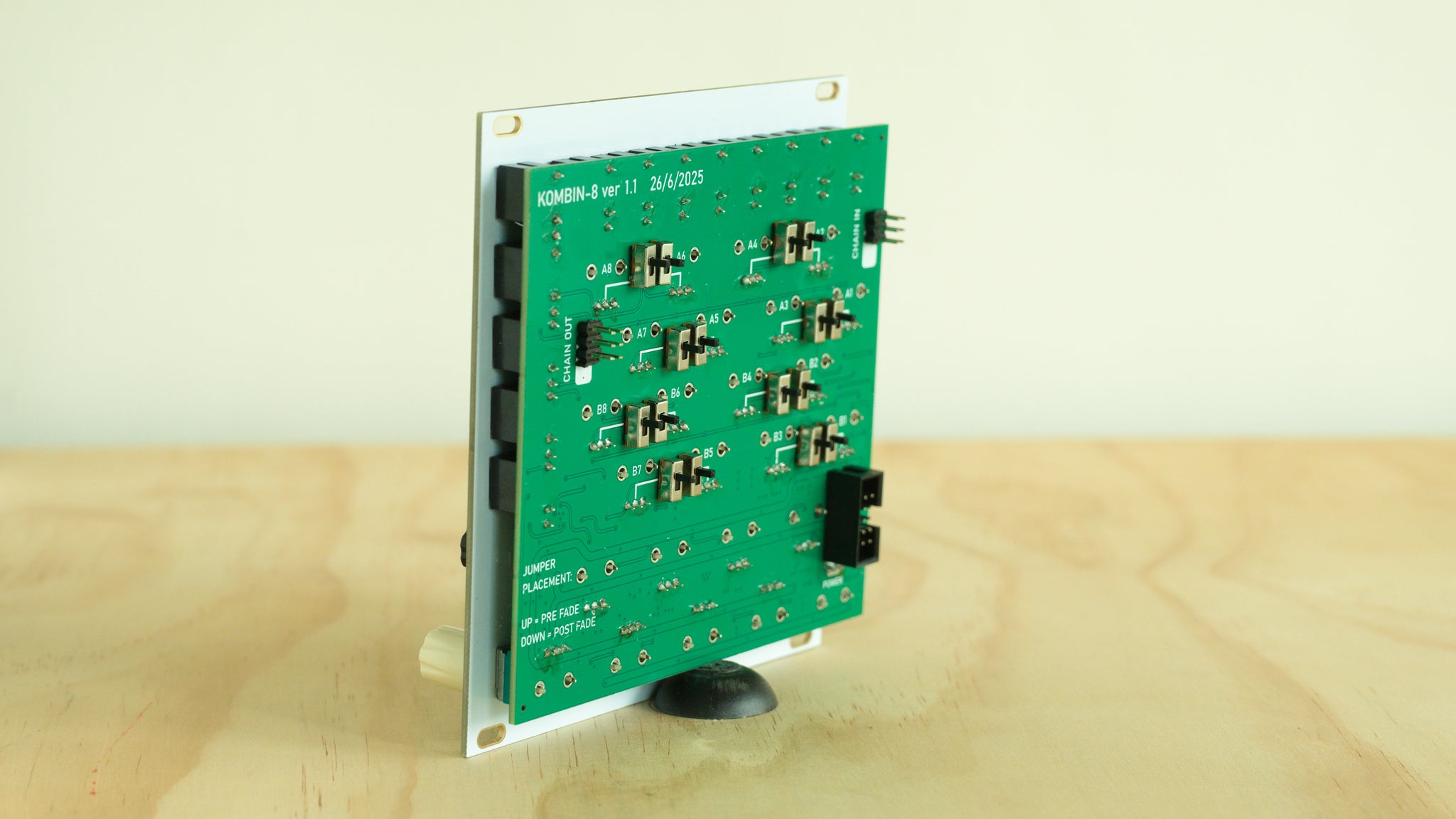

Pre-fader or post-fader send selection via rear switches
-
Master mix output with dedicated master level control
-
Chain multiple KOMBIN-8 modules for expanded channel counts
-
Classic passive-fader topology for low-noise, transparent mixing
-
Compact depth for skiff-friendly installation
Technical Specifications
-
Width: 24 HP
-

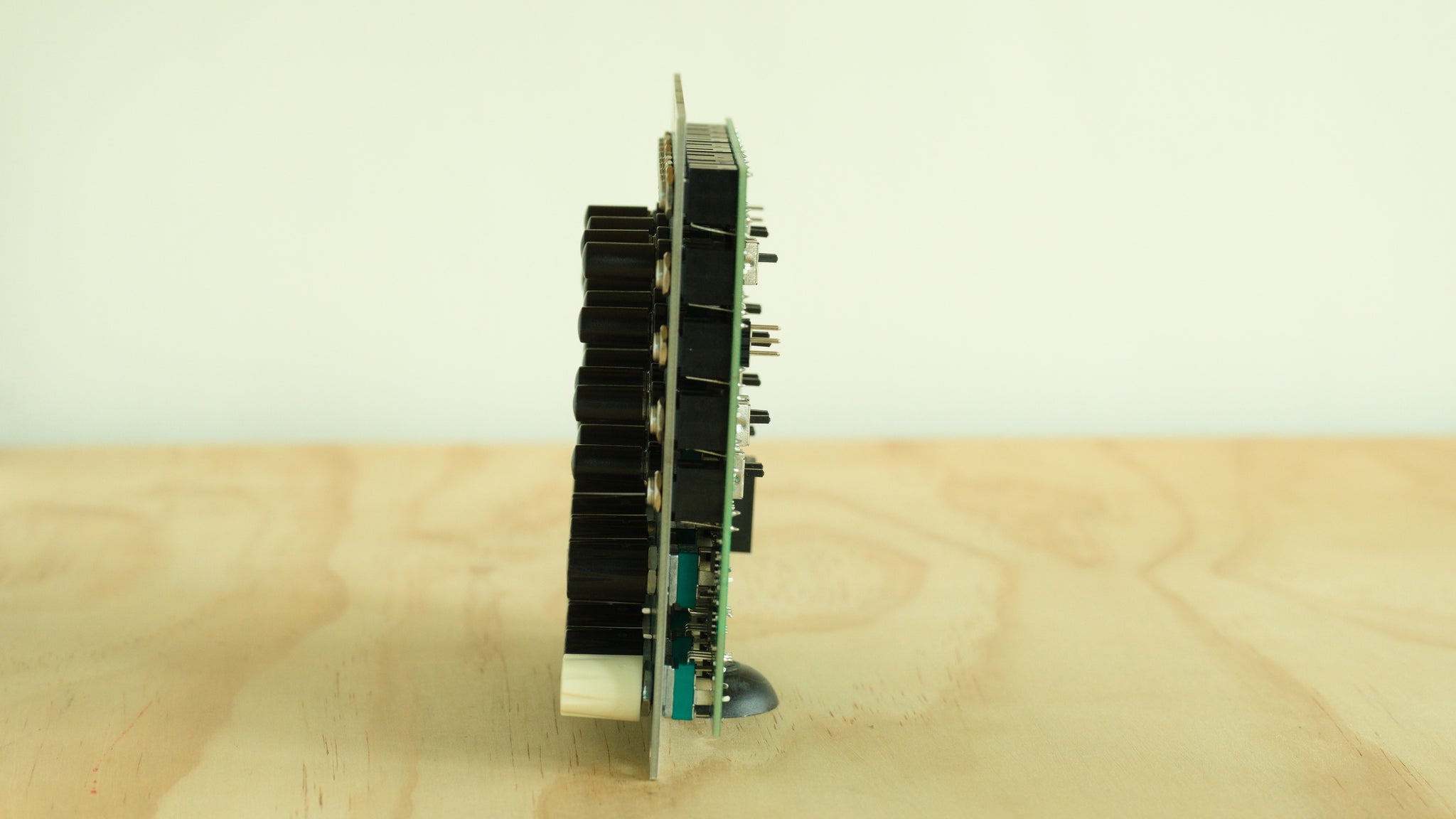

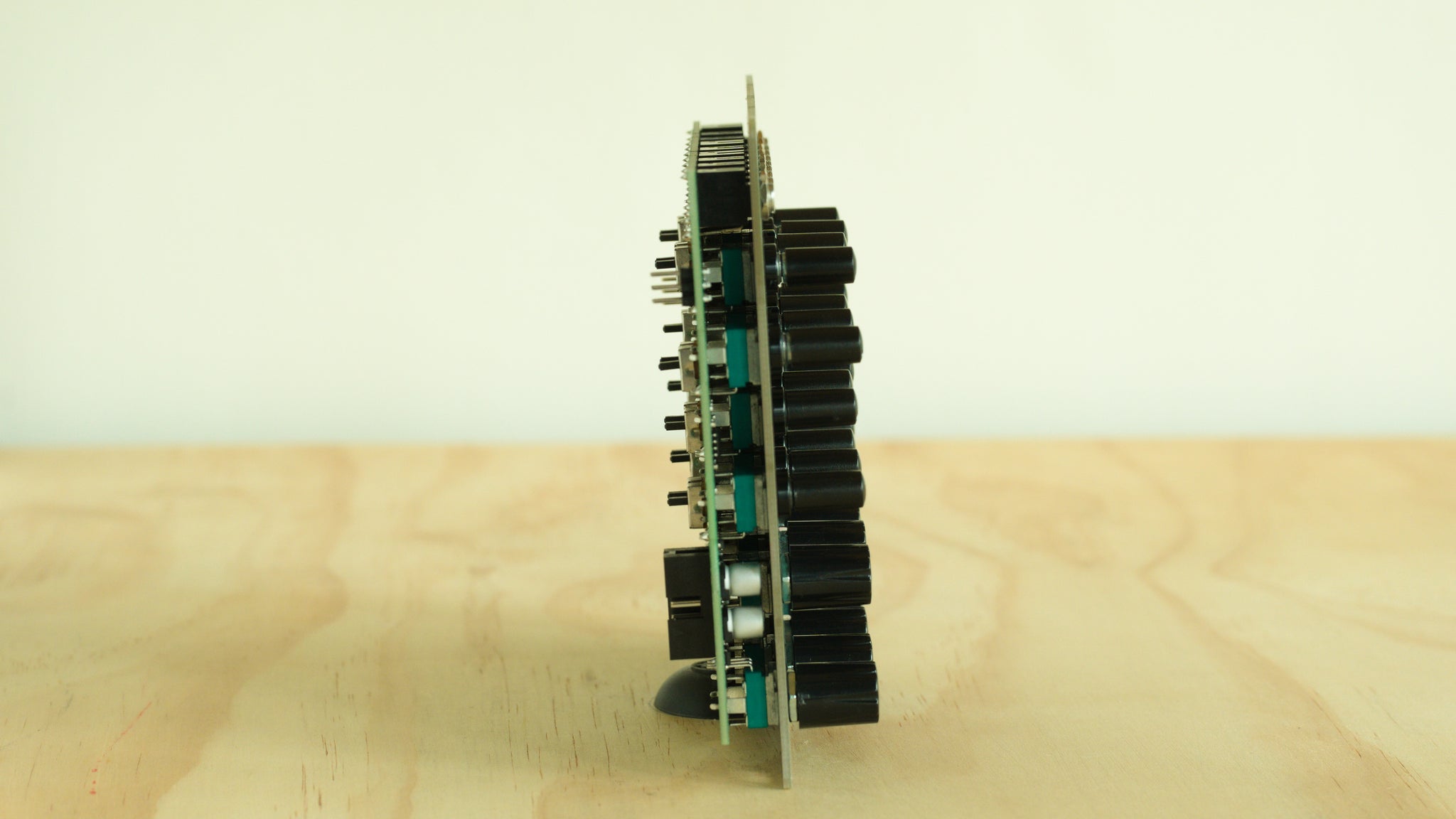

Depth: 20 mm
-
Power Draw: +12 V: 40 mA; +5 V: 0 mA; -12 V: 40 mA
- Low-Frequency Cutoff: ~1.6 Hz
Manual
Availability
KOMBIN-8 is available now from our website and through our network of authorised dealers.
Panel colours may show subtle variations between manufacturing runs.
