Tenderfoot Electronics – MORSE
CW Sender, Receiver & Networked Instrument

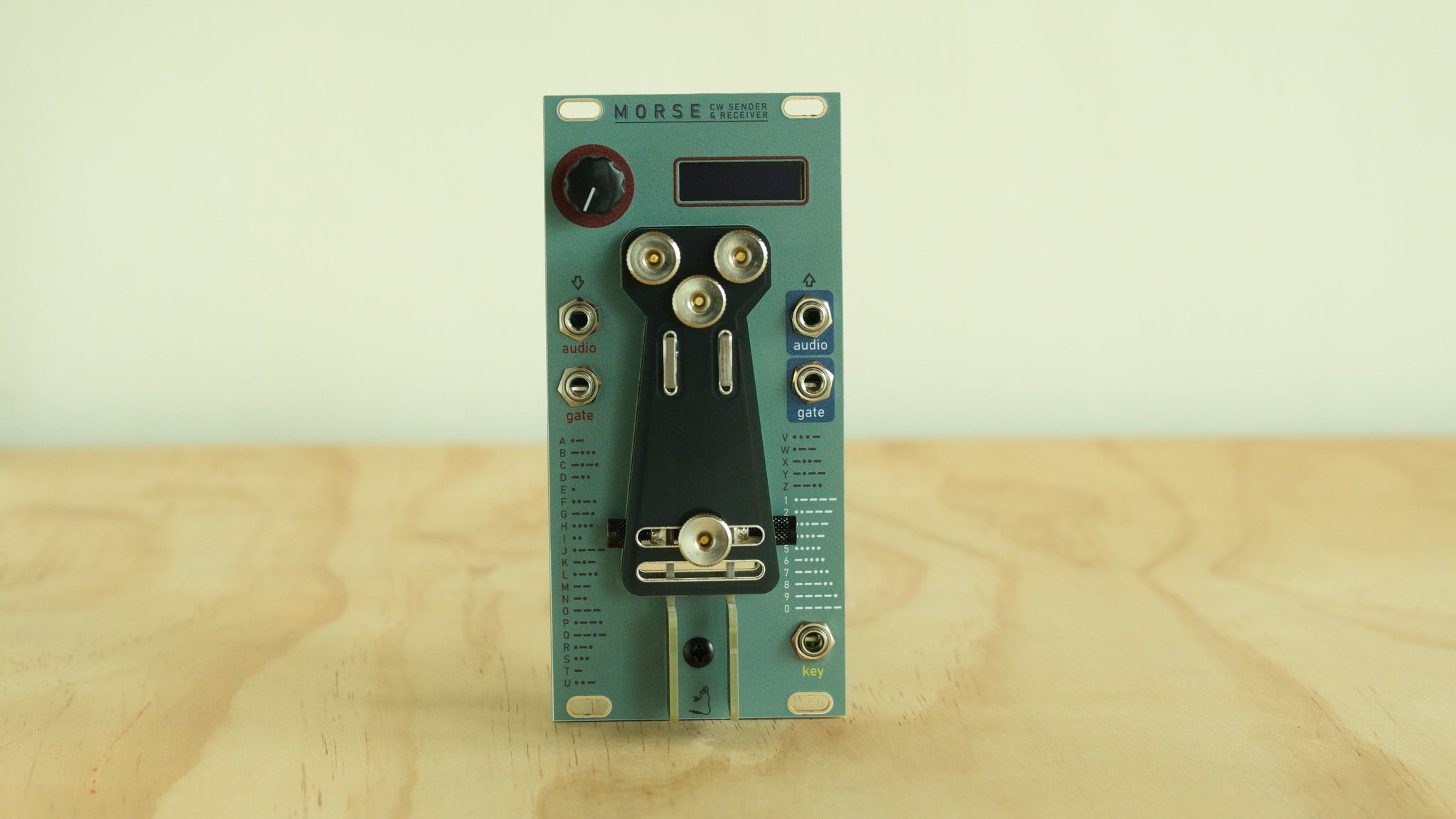

MORSE brings the timeless language of Morse code into your Eurorack system, bridging 19th-century communication with 21st-century modular synthesis. It functions as a CW sound source, a rhythmic gate generator, a practice tool, and even a collaborative instrument via its built-in Wi-Fi WebChat mode — letting you exchange real-time Morse signals with other users worldwide.
From traditional keying practice and message playback to live audio decoding and spectrum analysis, MORSE is as versatile as it is unique. Use the built-in paddle or straight key, connect your own external key, or trigger it via gates and audio inputs. With both audio and gate outputs, it integrates seamlessly into creative, rhythmic, and experimental patches.
Key Features
-

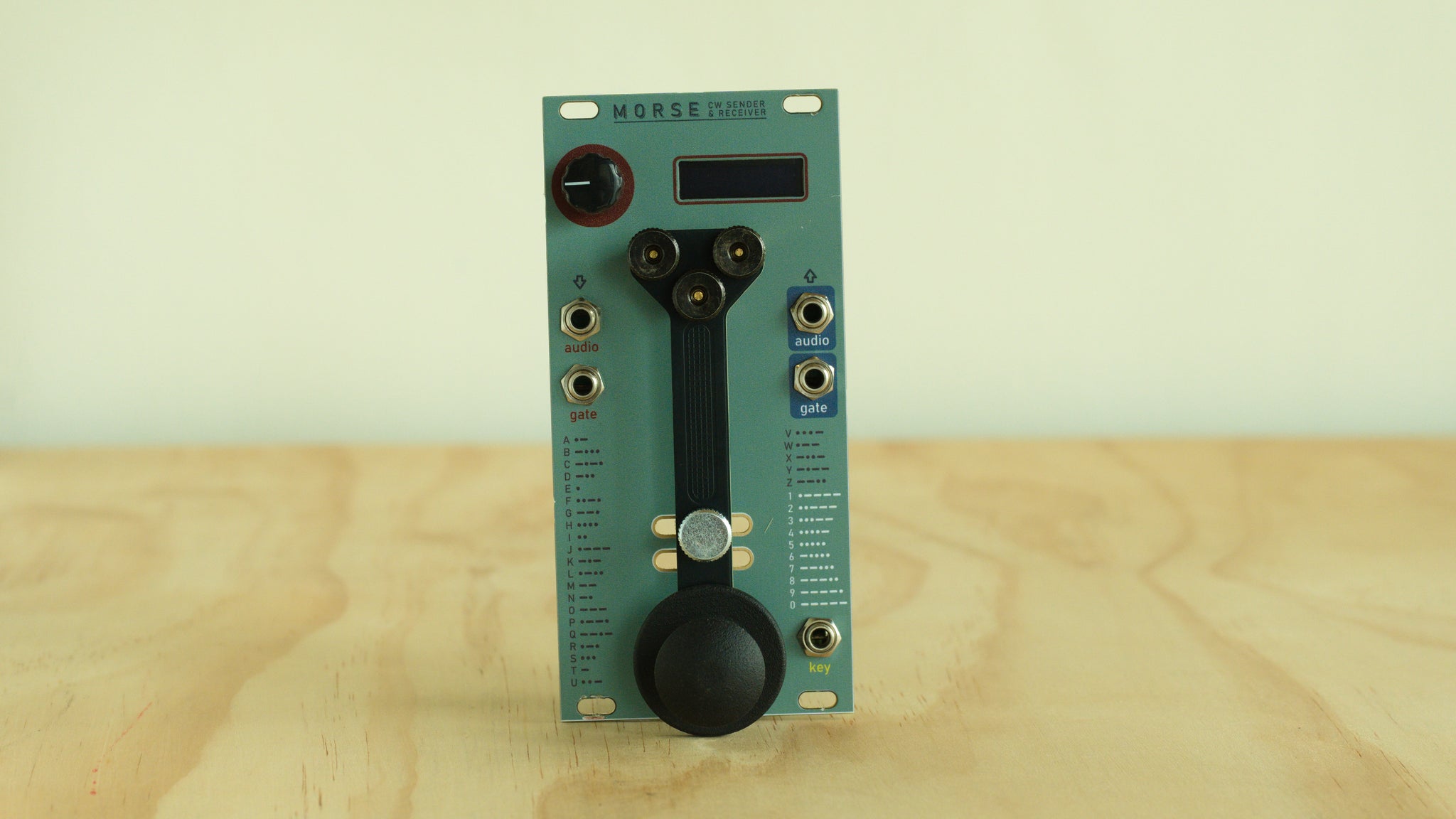

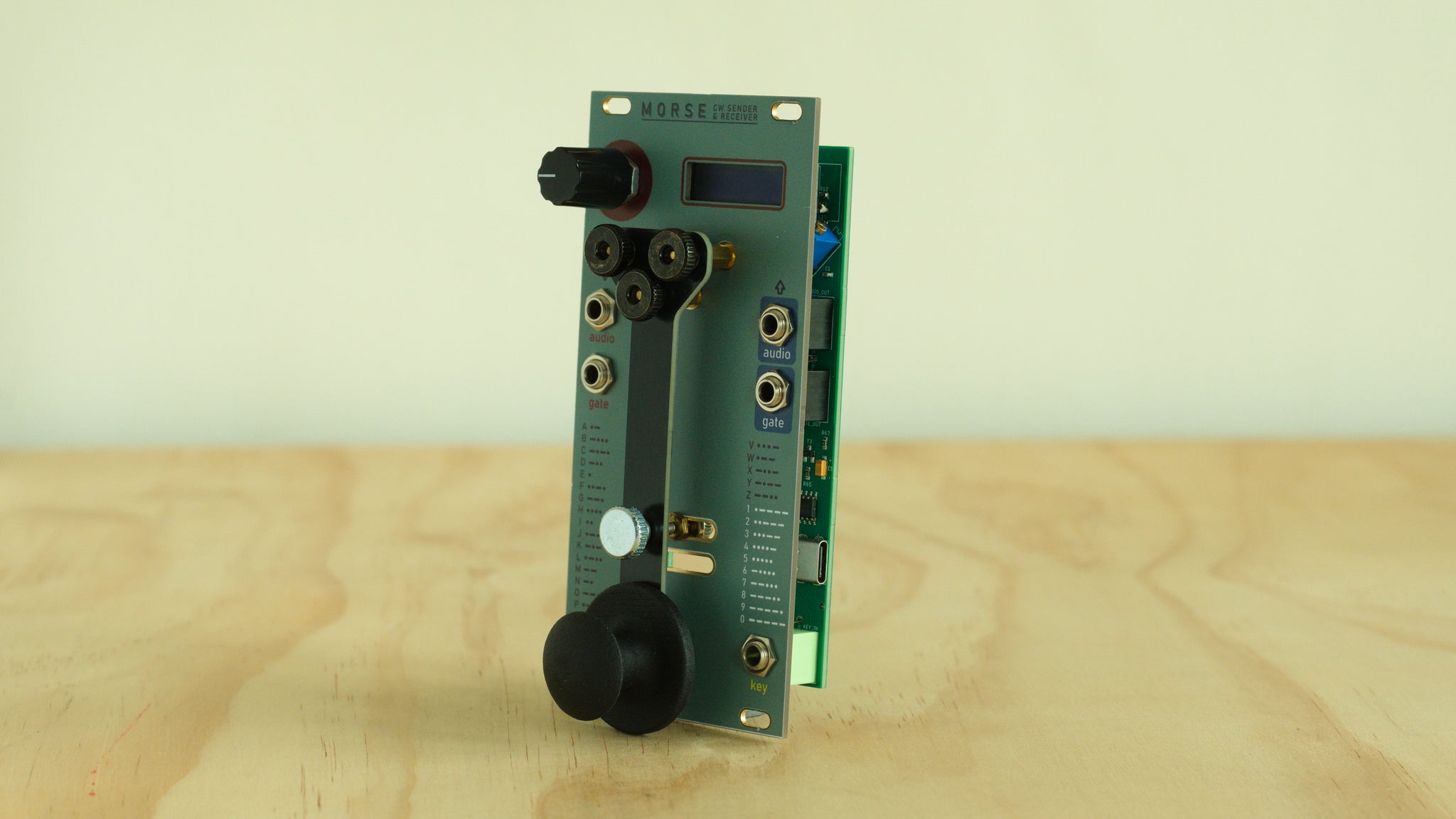

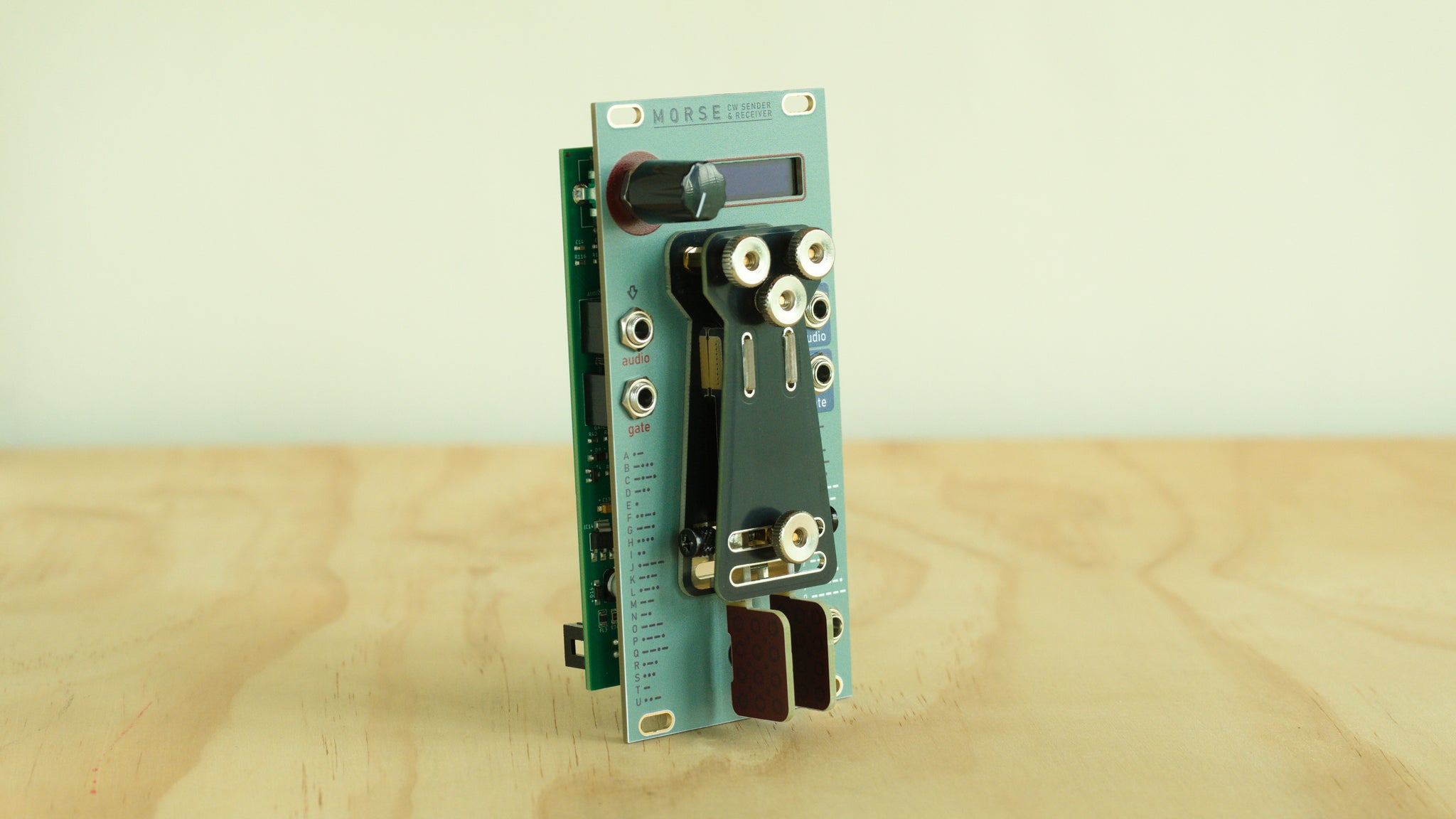

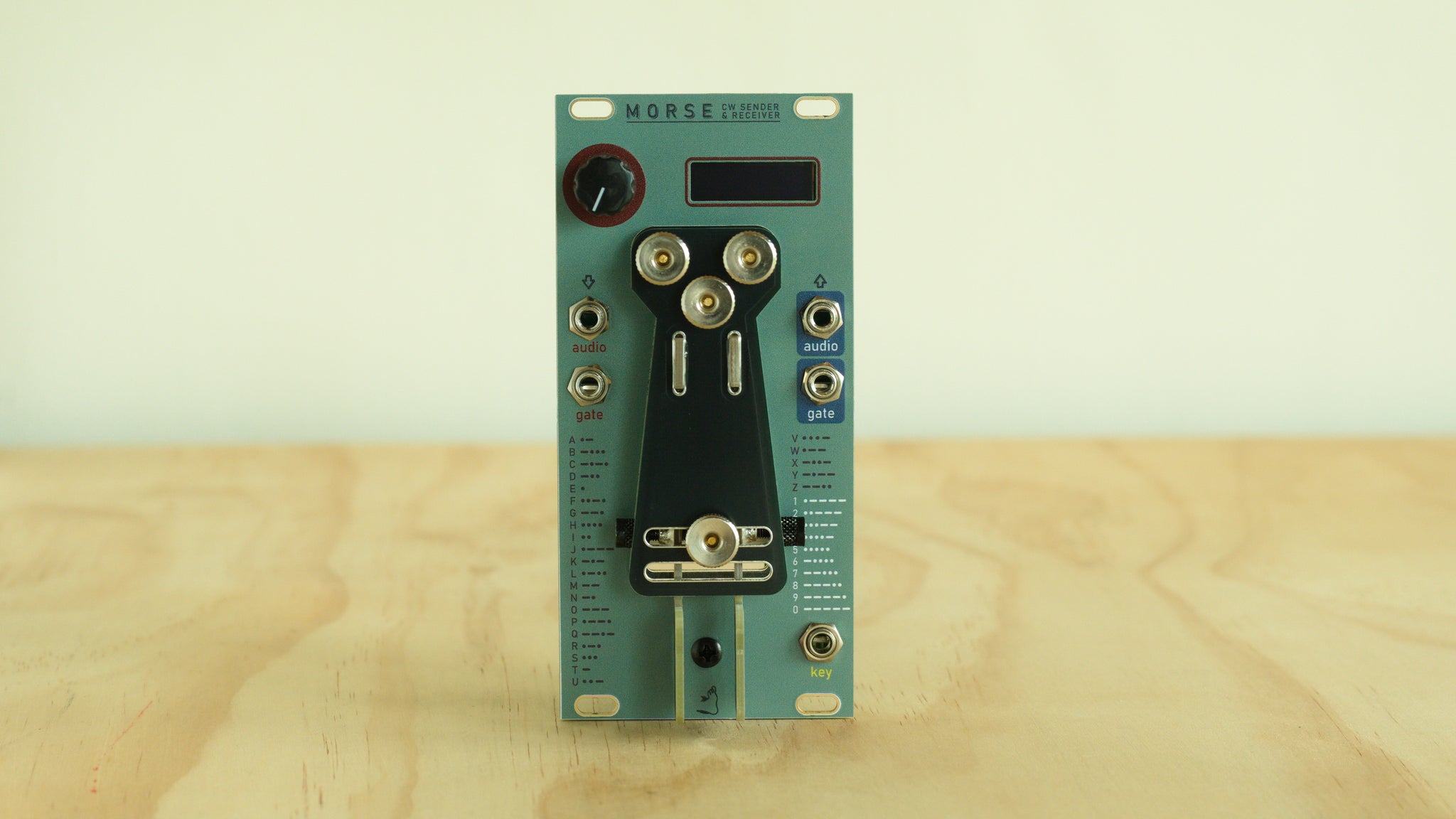

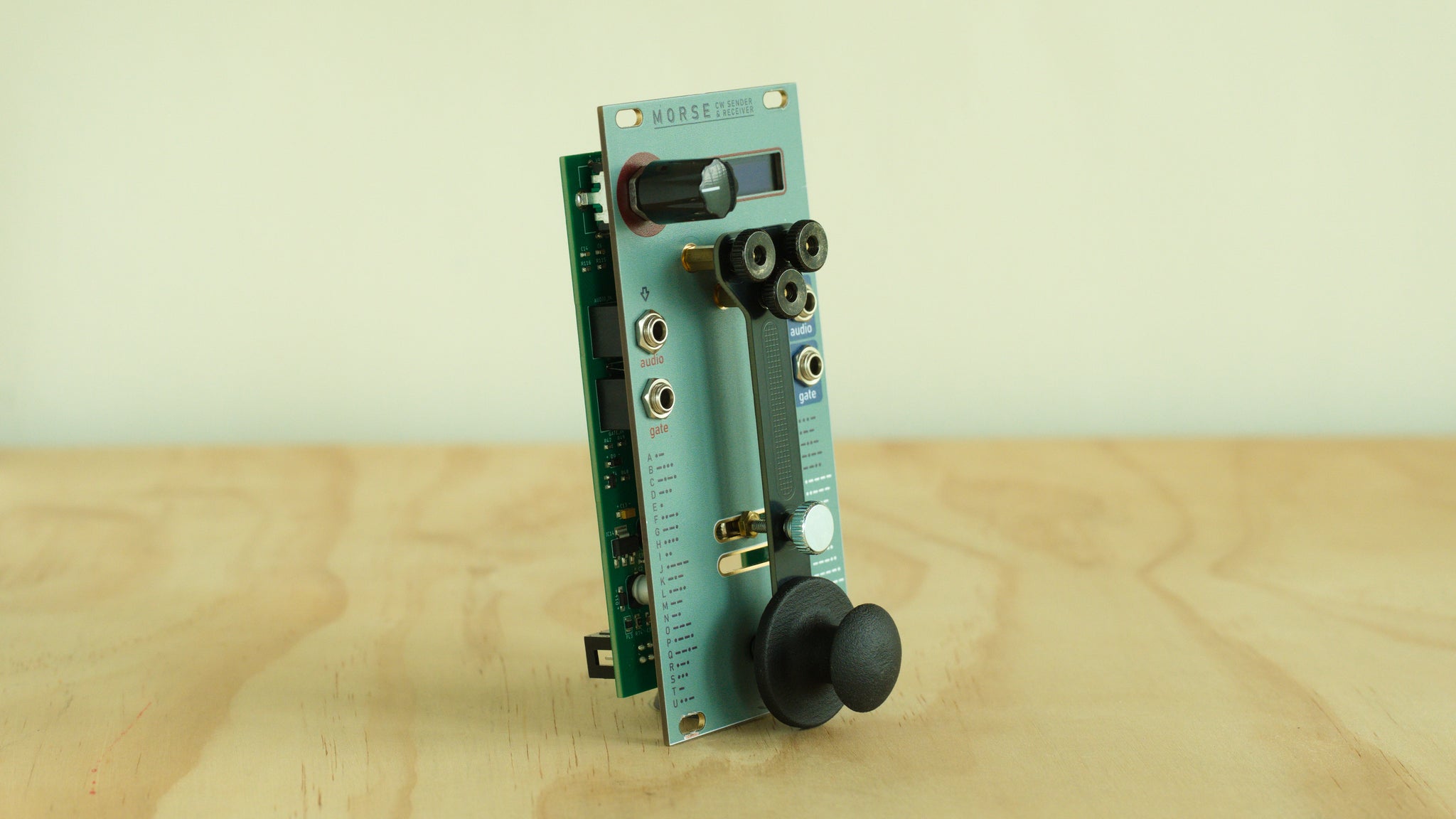

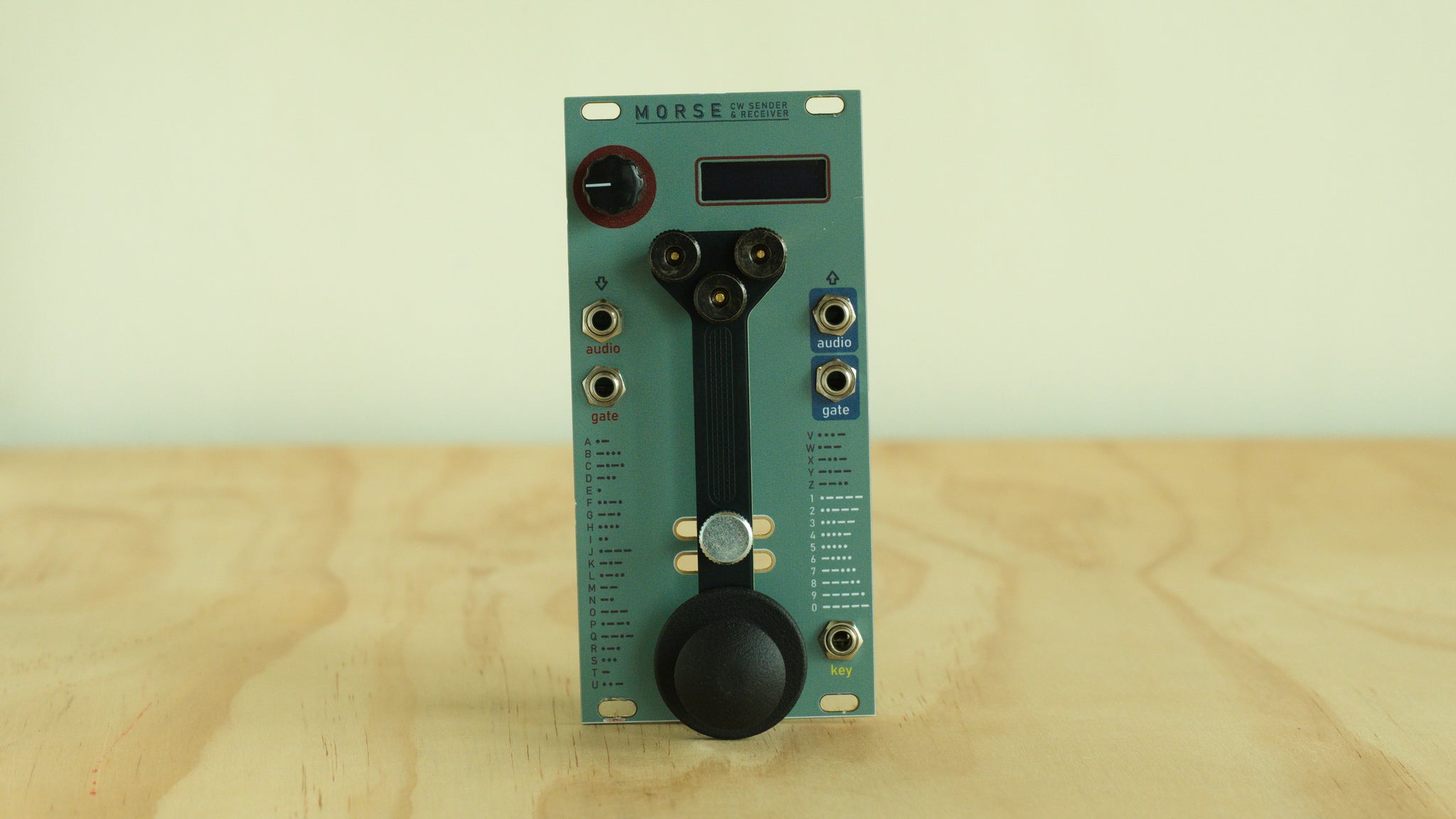

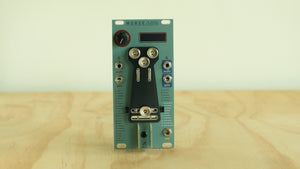

Built-in paddle key and straight key (both included, user-swappable)
-
Audio and gate outputs for sound generation and rhythmic control
-
Gate, audio, and key inputs for flexible triggering and decoding
-
Live audio Morse decoding with OLED text display
-
Integrated 32-band spectrum analyzer
-
Message storage and playback for automated sending
-
Wi-Fi WebChat mode for global real-time communication
-
Adjustable sidetone pitch, waveform, slew, and balance
-
Multiple keying modes including iambic A/B and ultimatic
-

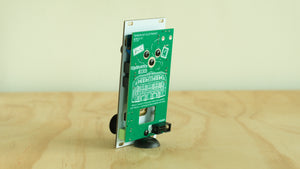

Skiff-friendly depth and compact 12 HP width
Technical Specifications
-
Width: 12 HP
-

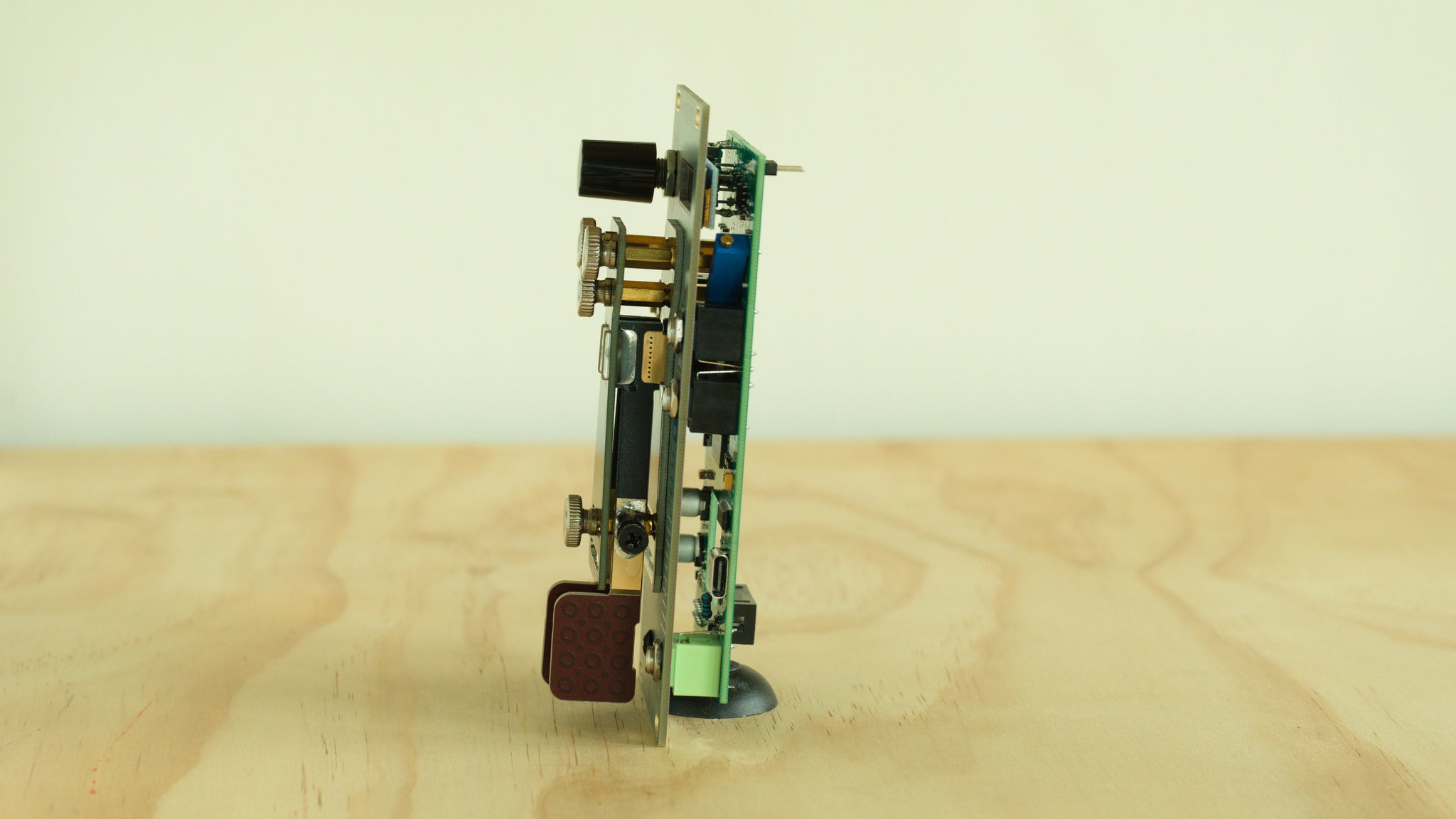

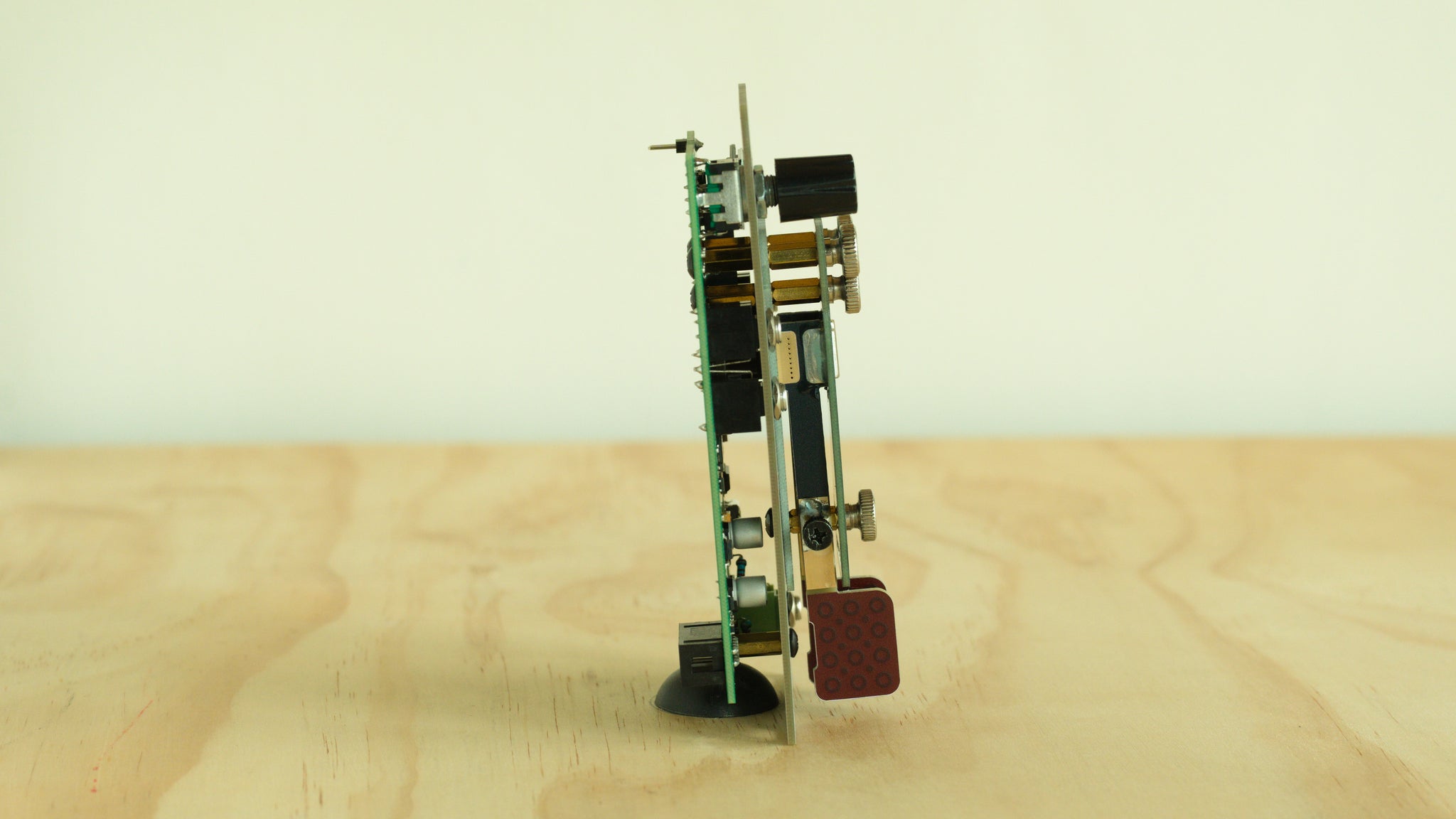

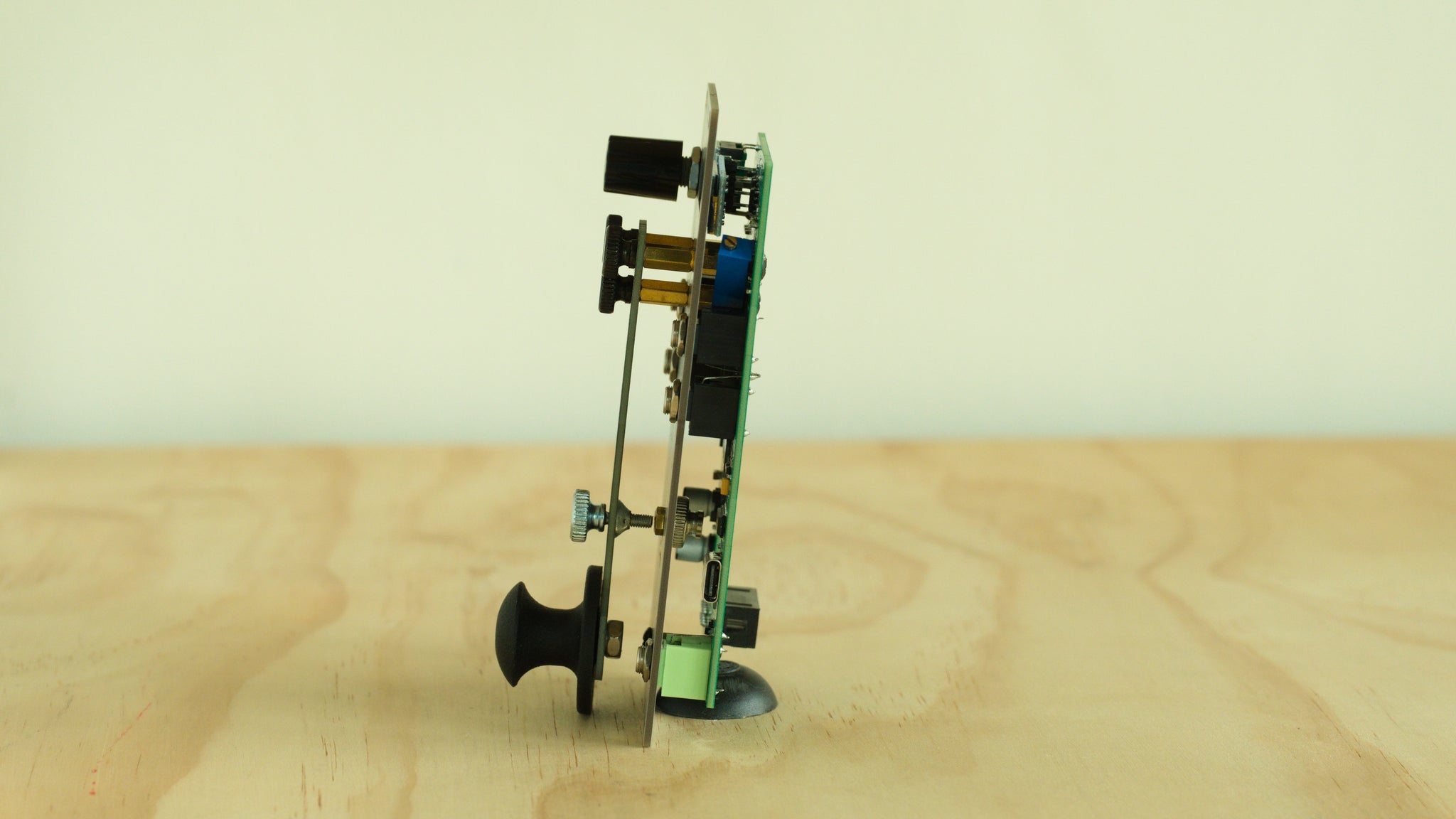

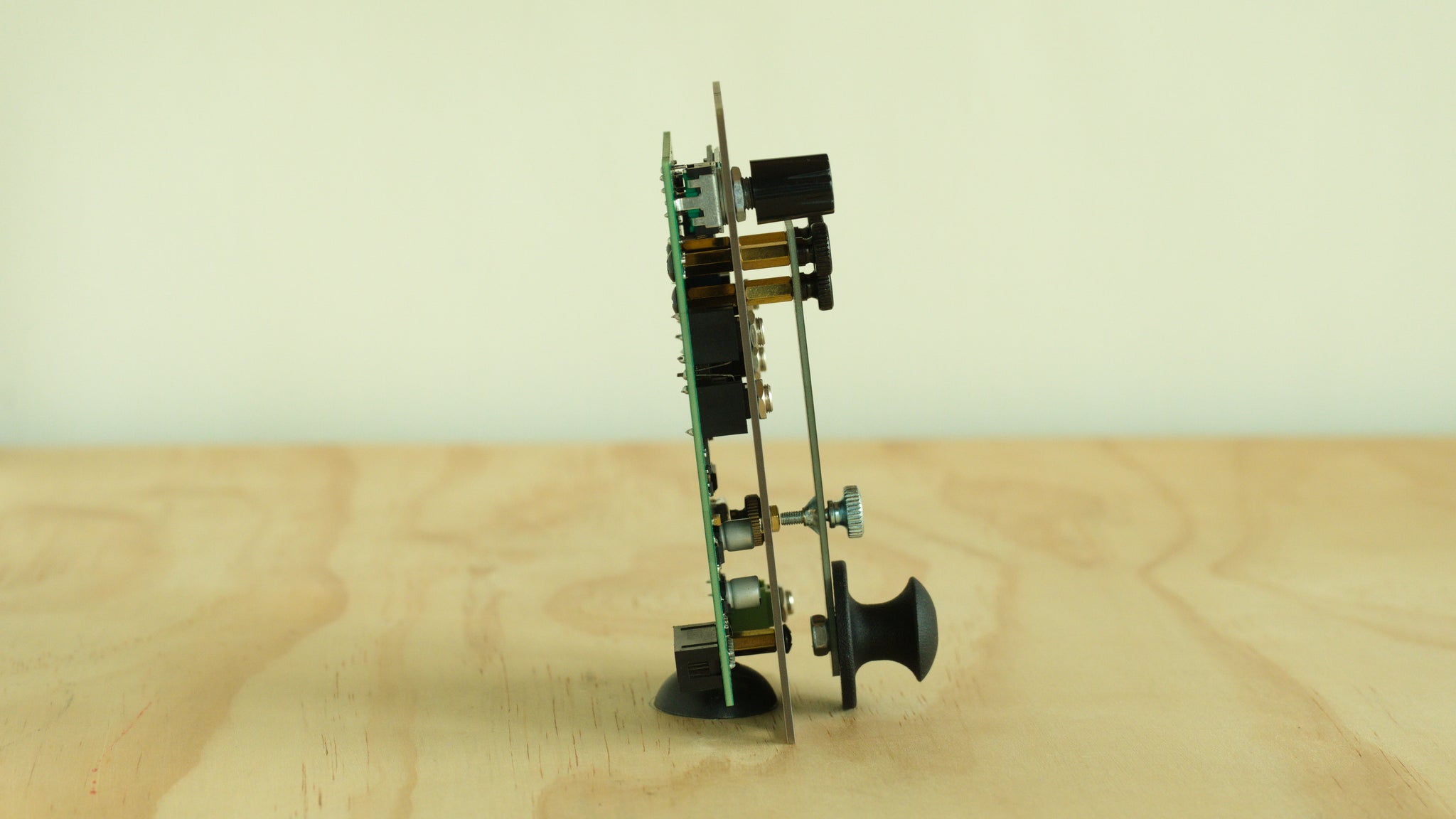

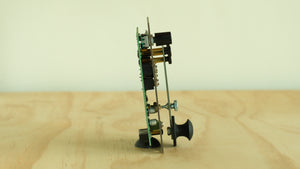

Depth: 20 mm (approx. 25 mm with cable)
-
Power Draw (Offline): +12 V: 92 mA; +5 V: 0 mA; -12 V: 4 mA
-
Power Draw (Wi-Fi/WebChat): +12 V: 175 mA; +5 V: 0 mA; -12 V: 4 mA
Manual
Availability
MORSE is available now from our website and through our network of authorised dealers.
